Automatic scan printing, Visual localization- NO NEED FOR MANUAL PLACEMENT
Ricoh G5i/ Toshiba CE4M/ Epson i3200 printhead, Printing speed 2000pcs coin/ h
3200HD/ TX800/ XP600 printhead | Max printing height 90mm
Max printing speed 148 m²/h, KAIOU 2513UV Flatbed printer for printing large signage, billboards, and decorative panels, Suitable for high volume producers
3.5pl, Printing speed max 30m²/h
CCD visual positioning uv printer, 40% faster production speed compared to ordinary uv printer.
Automatic scan printing, Visual localization- NO NEED FOR MANUAL PLACEMENT
Ricoh G5i/ Toshiba CE4M/ Epson i3200 printhead, Printing speed 2000pcs coin/ h
3200HD/ TX800/ XP600 printhead | Max printing height 90mm
3.5pl, Printing speed max 30m²/h
CCD visual positioning uv printer, 40% faster production speed compared to ordinary uv printer.
Roll and flat uv printing machine |Epson xp600
Epson i3200-E1/ i3200-U1 | MAX printing speed 80m²/h
Roll and flat uv printing machine |Epson xp600
Epson xp600*3pcs | 4Pass 3m²/H
Epson i3200 | MAX Printing speed 10m²/h
Roll and flat uv printing machine |Epson xp600
Epson i3200*4 pcs | 110pcs white cloth/hour;70pcs black cloth/hour
Epson i3200* 4~7 pcs | All in one system: thickener and printing
Epson i3200*4 pcs | 110pcs white cloth/hour;70pcs black cloth/hour
Epson XP600*2 pcs | 60pcs white cloth/hour; 45pcs black cloth/hour;
Focused on custom apparel production, small dtg printer for home use
600mm DTF powder shaker machine
Max printing speed 30 ㎡/h
Printing speed MAX 6㎡/h
MAX 6㎡/h, Up to 66 Tshirt prints per hour
Max 26m²/h, Up to 280 Tshirt prints per hour
MAX printing speed: 13 m²/h;Epson head print
Max printing speed 21㎡/h
4 pcs epson i3200 print head, Max printing speed 80 ㎡/h
4/ 8pcs Konica 512i printheads
4~8 pcs Konica 512i/ 1024i | MAX printing speed 460m²/h
KAIOU DTG Printer consumables
DTF hot melt powder
100% Compatibility with Popular DTF Printer Brands
offers the perfect solution for businesses seeking high-performance, reliable, and affordable printing films
for high-end marketing materials, premium packaging, labels, and invitations, providing a shimmering, luxurious touch
· 60cm x 100m: Ideal for larger projects such as banners, vehicle wraps, and large-format advertisements. · 30cm x 100m: Suitable for smaller, detailed designs like logos, labels, and custom apparel printing.
Color: CMYKWV, Suitable for any uv printers

Large format Solvent Printer

Large format Solvent Printer
4/ 8pcs Konica 512i printheads

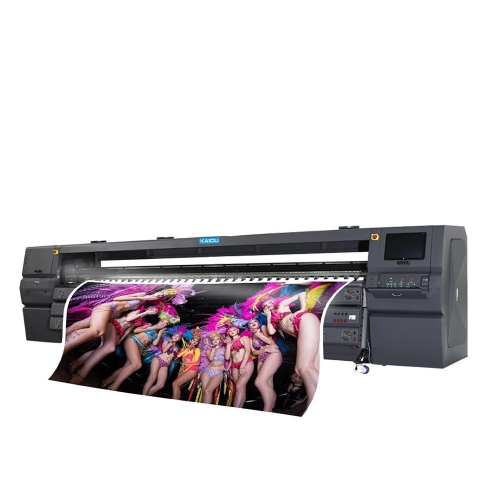

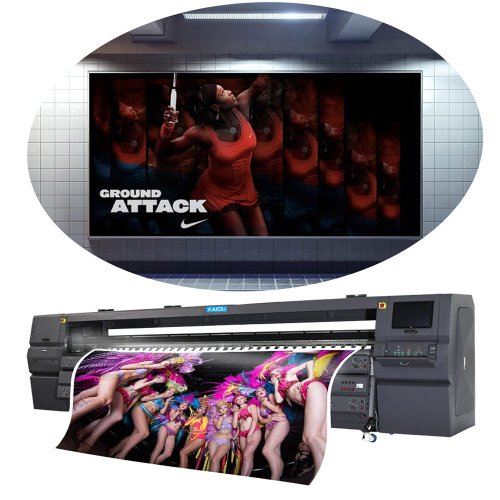

Product Model5000L
Printhead4/8pcs Konica512i
Ink TypeSolvent ink
Print modeMax 460m²/h (8heads)
Printhead Height1-5mm adjustable
Width5000mm
Maximum Print Width5000mm
ApplicationMainly used for outdoor advertising signage printing. Printon PVC Banners, Window Film, Printable Wallpaper, Printable Flooring, Self Adhesive Vinyl, Soft Signage, Mesh Banners etc.
Feeding & Taking up systemAuto feeding & taking up system(Optional)
Photo file formatPSD/DWG/HPG/HGL/PLT/PS/EPS/2PS
Printing processMaintop direct output
Cleaning systemAutomatic cleaning system(protecting printhead during night)
Print interfaceUSB2.0
Printhead HeightAbove Media Adjustable
RIP SoftwareMaintop/Photoprint/Wasatch
Input PowerAC220V,50HZ
Operation EnvironmentTemperature:20-28℃ Humidity:40%-70%
Package Dimension/GW7050*1050*1700mm;1600kg


4~8 pcs Konica 512i/ 1024i | MAX printing speed 460m²/h

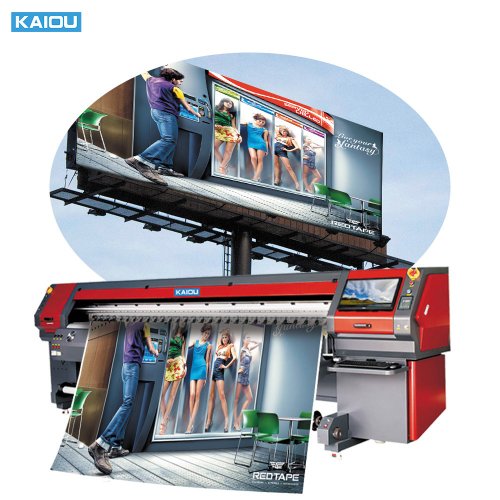

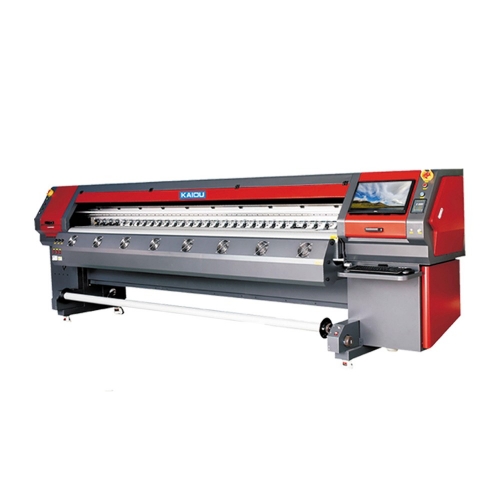

Product Model9000K
Printhead4/8pcs Konica512i /1024i head
Ink TypeSolvent ink
Print modeMax 460㎡/h (8heads)
Printhead Height1-10mm adjustable
Width3300mm(129,92inch)
Maximum Print Width3200mm(125,98inch)
ApplicationMainly used for outdoor advertising signage printing. Printon PVC Banners, Window Film, Printable Wallpaper, Printable Flooring, Self Adhesive Vinyl, Soft Signage, Mesh Banners etc.
Feeding & Taking up systemAuto feeding & taking up system(Optional)
Photo file formatPSD/DWG/HPG/HGL/PLT/PS/EPS/2PS
Printing processMaintop direct output
Cleaning systemAutomatic cleaning system(protecting printhead during night)
Print interfaceUSB2.0
Printhead HeightAbove Media Adjustable
RIP SoftwareMaintop, Photoprint,Wasatch
Input PowerAC220V,50HZ
Operation EnvironmentTemperature:20-28℃ Humidity:40%-70%
Machine Dimension/NWL4600*W870*H1450mm 550kg
Package Dimension/GWL4750*W1040*H850mm 650kg


Large Format Solvent Printer is a type of industrial printing device designed to produce high-resolution, large-scale prints on flexible materials using solvent-based inks. These printers are commonly used for outdoor and indoor advertising, where durability and weather resistance are key requirements.

Key Features:

  1. Solvent-Based Inks: Solvent printers use inks that contain volatile organic compounds (VOCs), which allow the ink to adhere to a wide range of materials, particularly non-porous surfaces like vinyl and PVC. These inks are highly durable, waterproof, and resistant to fading from UV exposure.

  2. Large Printing Area: Large format printers are designed to handle wide media rolls, typically ranging from 24 inches to over 100 inches in width. This makes them ideal for printing large banners, billboards, vehicle wraps, and signage.

  3. High Durability: Prints produced with solvent-based inks are long-lasting and suitable for outdoor use, often lasting several years without significant degradation.

  4. High Volume Printing: Large format solvent printers are often used in commercial settings for producing large quantities of prints, making them ideal for businesses that require bulk advertising materials.

Applications:

  • Billboards: Large format solvent printers are frequently used for printing billboards that need to withstand harsh outdoor conditions.

  • Vehicle Wraps: Due to the flexibility of solvent inks, these printers are widely used for printing vehicle graphics that require durability and resistance to weather elements.

  • Vinyl Banners: Solvent printing is a common method for producing high-quality vinyl banners for events, trade shows, and storefronts.

  • Building Wraps: These printers can produce massive advertisements that are applied to the exterior of buildings.

Advantages:

  • Weather Resistance: Solvent-based inks are waterproof and resistant to fading, making them perfect for outdoor applications.

  • Compatibility with Different Substrates: These printers can print on a wide range of materials, including vinyl, mesh, canvas, and fabrics.

  • Cost-Effective: For large print runs, solvent printers offer a cost-effective solution, especially for outdoor signage.

Contact us and get KAIOU SOLVENT PRINTER quotation!
