KO6004UV | MAX 75cm UV DTF Printer
Model | KO6004UV |
Application | Acrylic,wooden,ceramics,metal,PVC,Wall paper, Cup Wraps, label sticker, nail sticker, gold hot stamping foil film |

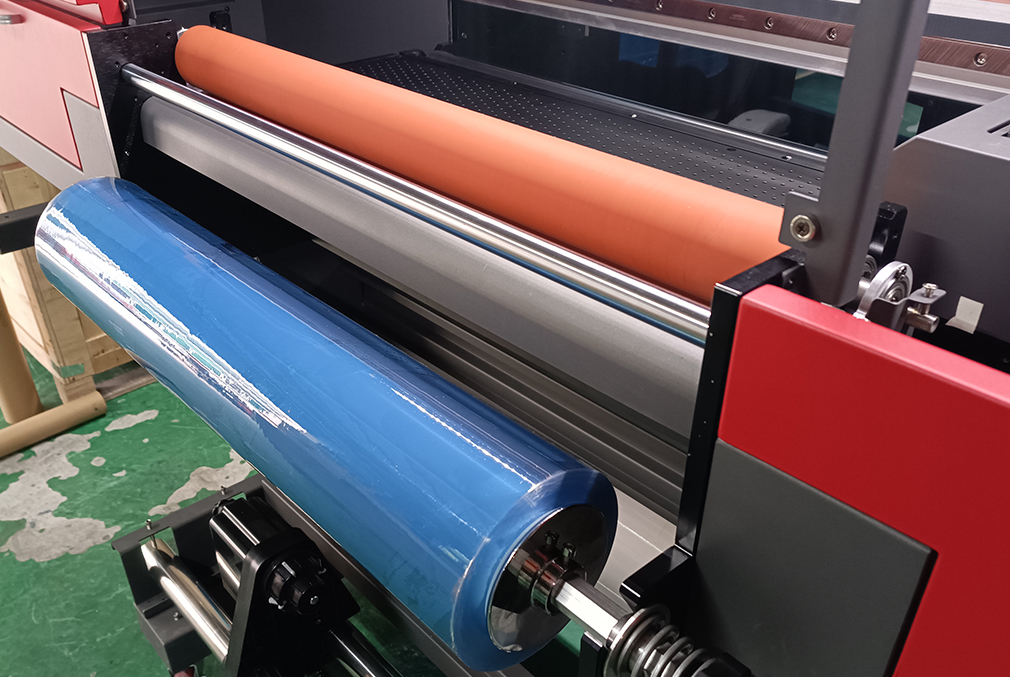

Type | UV DTF priner with lamination |
Printhead | Epson i3200*3~4pcs |
Print width | 0-750mm |
Print height | 0-60mm |
Speed | 4Pass 10m²/H, 6PASS 8m²/H, 8PASS 6m²/H |
Color | CYMK+W+Varnish |
Software | Maintop |
Ink Droplet Size | 3.5PL |
Printer size | 206*85*140cm |
Printer weight | 230kg |
Package | Wooden |
- Description

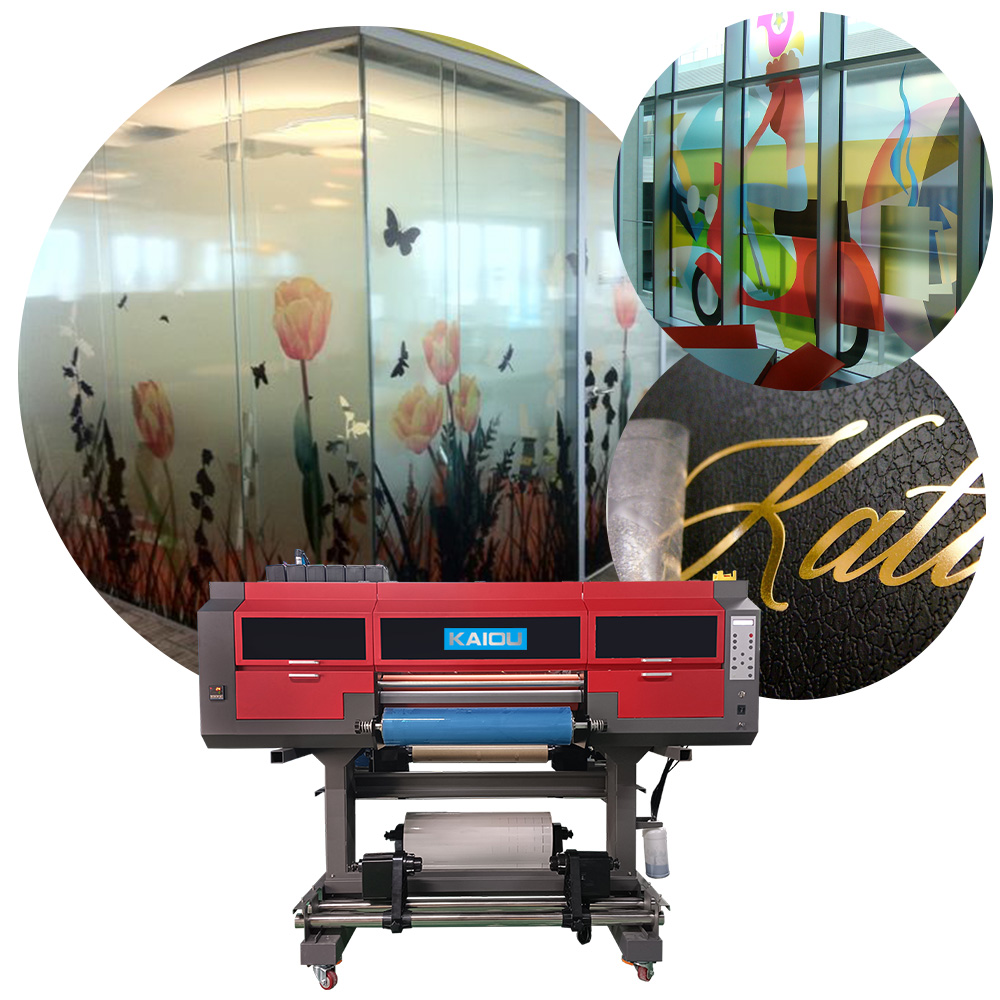

KAIOU 60cm Roll-to-Roll UV DTF (Direct-to-Film) printer is a versatile, cutting-edge printing machine that offers outstanding performance for printing on a wide variety of materials. UV DTF printing technology allows businesses to produce high-quality images on flexible surfaces, especially useful in industries such as packaging, advertising, and product labeling. This printer offers precision, durability, and the ability to print on diverse substrates with minimal ink consumption.
What is a 60cm Roll-to-Roll UV DTF Printer?
KAIOU 60cm roll-to-roll UV DTF printer is a specialized machine designed for printing on films that can later be transferred to different materials. With a 60cm wide printing area, this printer is capable of handling medium-to-large production volumes, ideal for businesses looking to produce custom graphics, labels, stickers, and promotional materials.
The printer uses a combination of UV-curable inks and a direct-to-film transfer process. It cures the ink instantly using UV light, which ensures durability and high-quality prints that can resist water, fading, and scratches. It is particularly beneficial for printing on non-porous materials, such as plastics, metals, glass, and textiles.
Features and Specifications of the 60cm Roll-to-Roll UV DTF Printer
Nozzle Model: i3200 (4 nozzles for enhanced productivity)
Printing Speeds: Multiple pass options (4PASS, 6PASS, 8PASS) with speeds ranging from 3m²/h to 10m²/h depending on the quality and speed required
Media Compatibility: Supports printing on various materials like acrylic, aluminum, foam boards, car stickers, self-adhesive vinyl, soft film, and more
Print Height: Can accommodate media up to 60mm in height
Media Width: Up to 750mm, allowing wide format printing for various applications
Curing System: Uses LED water cooling for energy efficiency and effective ink curing
Ink Supply System: Includes an ink shortage alarm and white ink mixing system to ensure continuous operation without downtime
RIP Software: Supports Monte 6.1 for advanced image processing
File Formats Supported: PDF, JPEG, TIFF, among others for maximum compatibility
How to Use the 60cm Roll-to-Roll UV DTF Printer
1. Setup and Configuration
Before using the printer, ensure that it is properly installed and configured. The setup involves connecting it to a computer via a Gigabit network interface. Once the machine is powered on, load the appropriate RIP software (Monte 6.1, PP, PF) for file processing.
2. Preparing the Design
Using graphic design software such as Adobe Illustrator, CorelDRAW, or Photoshop, create or import the designs to be printed. Save the files in a compatible format such as PDF, TIFF, or JPEG.
3. Loading the Media
Select the appropriate media based on the application—acrylic, soft films, glass, wood, etc. The printer supports a media width of up to 750mm and a height of 60mm. Position the media on the print bed or roll for roll-to-roll printing.
4. Printing Process
Send the file to the printer through the RIP software. Choose the desired pass (4PASS, 6PASS, or 8PASS) based on the balance between speed and print quality. The UV light will cure the ink immediately, ensuring that the print dries quickly and remains durable.
5. Finishing and Transfer
After printing, the film is ready for transfer onto the desired surface. This flexibility allows businesses to print on a variety of substrates, including those that may be difficult to print directly onto, such as irregular shapes or curved surfaces.
Applications of the 60cm Roll-to-Roll UV DTF Printer
The 60cm roll-to-roll UV DTF printer is extremely versatile and can be applied in numerous industries:
Packaging Industry: Create customized labels and packaging designs for products such as cosmetics, electronics, and consumer goods. The ability to print on flexible materials like films, stickers, and labels allows for high-quality branding and product differentiation.
Advertising and Signage: Ideal for printing vibrant, detailed graphics on large surfaces such as banners, posters, and signage. The durability of UV-cured ink ensures that the prints remain resistant to weathering, making them suitable for both indoor and outdoor use.
Electronics and Product Branding: The ability to print on non-porous materials makes this printer an excellent choice for branding electronics, gadgets, and accessories. UV printing allows for intricate details and vibrant colors on small devices like phone cases and laptop covers.
Gift and Promotional Products: Customization of gifts, promotional products, and corporate merchandise is made easy with UV DTF printing. Items such as pens, mugs, and keychains can be printed with company logos and personalized designs for promotional events.
ROI (Return on Investment) of the 60cm Roll-to-Roll UV DTF Printer
Investing in a 60cm roll-to-roll UV DTF printer can offer significant returns in the long term, especially for businesses involved in packaging, promotional products, and customization services. Here's how:
Low Production Costs: With efficient ink usage and the ability to print on a wide range of materials, businesses can lower production costs while offering premium products.
Scalability: Whether you are a small business or a large-scale manufacturer, the 60cm print bed allows you to scale production to meet customer demands. Large orders can be handled with ease, while the quality remains consistent.
Higher Margins: Custom and personalized printing services typically offer higher profit margins. With the capability to produce one-off designs and small-batch orders, you can cater to niche markets and charge a premium for unique, high-quality prints.
Diversification: The versatility of the printer allows you to expand your product offerings across various industries—advertising, packaging, textiles, and more. This diversification can help protect your business against market fluctuations.
Durable Prints, Reduced Waste: UV curing technology ensures that prints are long-lasting, reducing the need for reprints due to fading or damage. This durability translates to higher customer satisfaction and repeat business.
After-Sales Service and Support
Purchasing a 60cm roll-to-roll UV DTF printer is a significant investment, and reliable after-sales service is crucial to maintaining smooth operations. Here’s what you should expect:
Technical Support: we provide dedicated technical support to help with installation, configuration, and troubleshooting. A responsive support team can minimize downtime and ensure the machine operates at peak efficiency.
Training and Tutorials: We offer training sessions or video tutorials to help users get familiar with the equipment and software. This can include hands-on training for your staff, covering everything from basic setup to advanced printing techniques.
Maintenance and Spare Parts: Kaiou provides technical support and parts supply, ensuring that your machine continues to run smoothly. For specific repairs or complex issues, reaching out to their service team or authorized technicians is recommended.
Regular maintenance, combined with having a few critical spare parts on hand, will keep your Kaiou UV printer running efficiently and minimize downtime.
Software Updates: As RIP software and other technology evolve, having access to updates is essential for staying current with industry standards and ensuring the printer is compatible with new file formats or design tools.
KAIOU offers a wide range of consumables to complement its UV printers, including AB film, UV ink, and golden/silver film for foil printing. These materials provide a significant enhancement to the aesthetic appeal of printed products. Here’s how they benefit users:
AB Film: This film is typically used in DTF (Direct-to-Film) printing applications, providing a stable transfer medium for designs. It ensures smooth, high-quality transfers onto fabrics or other materials. It is a crucial element for heat transfer applications in apparel and accessories customization.
UV Ink: KAIOU's UV ink is specifically designed for fast drying and high adhesion across various substrates like plastic, metal, glass, and leather. UV inks also offer vibrant colors and durability, essential for producing long-lasting prints that retain their quality over time.
Golden/Silver Film for Foil Printing: This special foil enhances the luxurious feel of products by adding metallic gold or silver effects to the print. This can be applied to various items such as cosmetic packaging, gift boxes, and promotional materials. The metallic finish not only enhances the visual appeal but also allows brands to charge premium prices due to the added perceived value.
Aesthetic Enhancement: The use of gold and silver foil creates an eye-catching, luxurious look on products, which can attract more consumers.
Premium Pricing: By elevating the visual and tactile quality of items, businesses can position their products as high-end, thus justifying higher prices.
By using these materials alongside KAIOU’s UV printers, businesses can offer premium, customized products that stand out in competitive markets, increasing their appeal and profitability.
KAIOU 60cm Roll-to-Roll UV DTF Printer is an excellent choice for businesses looking to expand their printing capabilities across a range of industries. With its flexibility, high print quality, and low production costs, this machine offers an attractive return on investment. By choosing the right model and taking advantage of reliable after-sales support, businesses can streamline their production processes and create high-value products that stand out in the market. Contact us today for pricing and further details!
